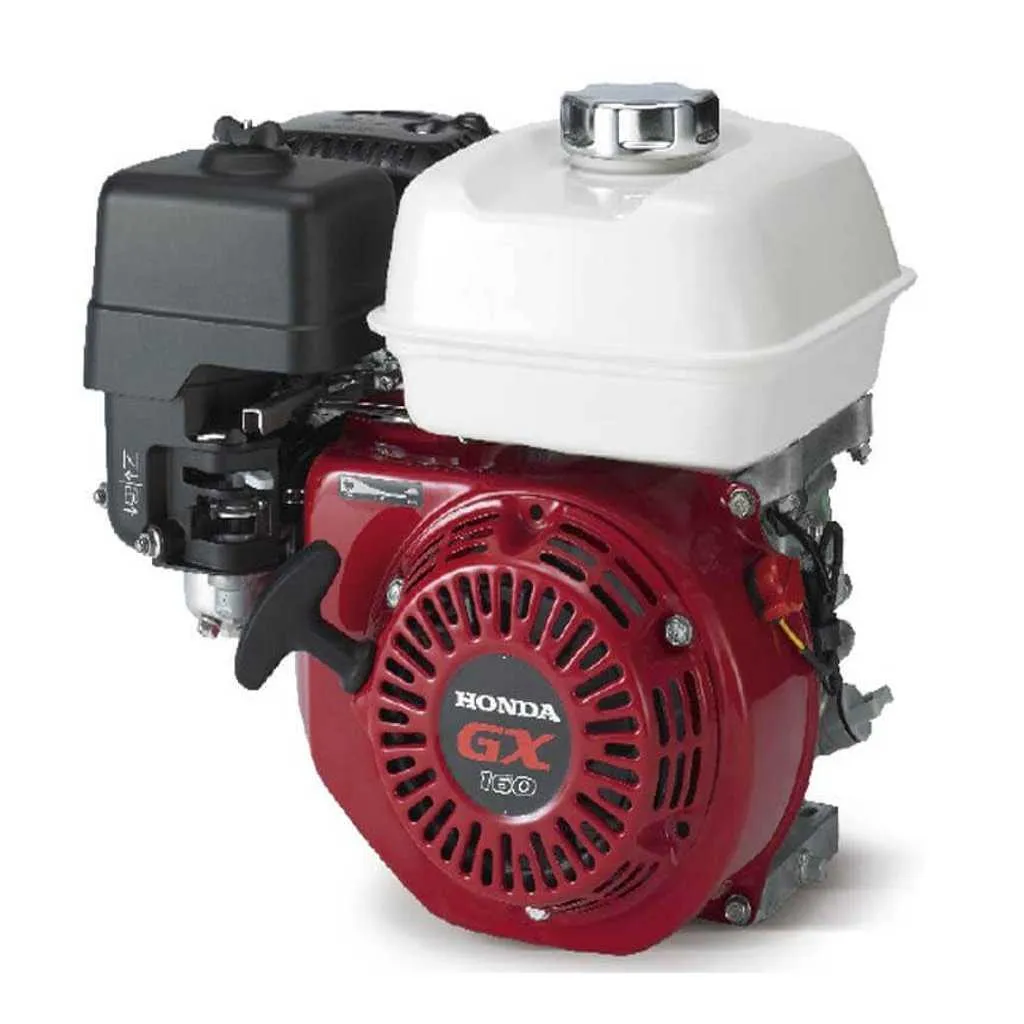

Product Description
-
OHV design enhances combustion efficiency
-
High power-to-displacement ratio
-
Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
-
High quality materials and purpose-built components which ensure reliable, long-term use
-
Meets world's most stringent environmental legislation
-
Low fuel and oil consumption
-
Reduced vibration and noise levels
Product Specification
|
Brand |
Honda |
|
Product Code |
GX160 |
|
Product Type |
General Purpose Engine |
|
Engine Type |
4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft |
|
Cylinder Sleeve Type |
Cast iron sleeve |
|
Bore X Stroke |
68 x 45 mm |
|
Displacement |
163 cm³ |
|
Compression Ratio |
9.0 : 1 |
|
Net Power |
3.6 kW ( 4.8 HP ) / 3600 rpm |
|
Cont Rated Power |
2.5 kW ( 3.4 HP ) / 3000 rpm, 2.9 kW ( 3.9 HP ) / 3600 rpm |
|
Max. Net Torque |
10.3 Nm / 1.05 kgfm / 2500 rpm |
|
Ignition System |
Transistorised |
|
Starter |
Recoil (el. start optional) |
|
Fuel Tank Capacity |
3.1 Liter |
|
Fuel Cons. At Cont. Rated Power |
1.4 L/h - 3600 rpm |
|
Engine Oil Capacity |
0.6 Liter |
|
Dimensions (L X W X H) |
312 x 362 x 346 mm |
|
Dry Weight |
15.1 kg |
|
Warranty |
6 Months |
